.188X2.5 OAL R.010 4FL

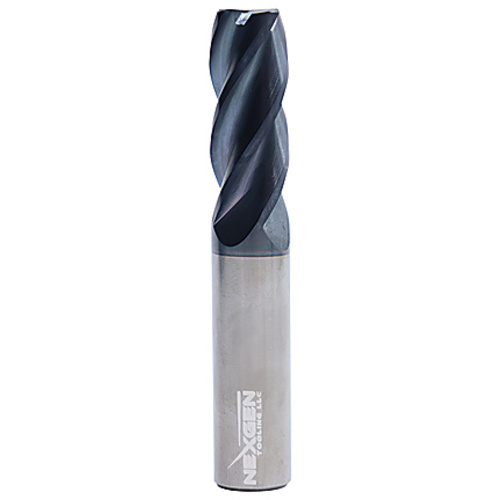

SQ End Mill; 3/16″ Dia. × 5/16″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 0.010″ RE ; 4 FL ; Micrograin Carbide ; A-ProMAX ; Series NXG-4
| Cutting Diameter (DC) | 3/16″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/16″ | Tool Type | Endmill |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Micrograin Carbide | Series/List # | NXG-4 |
| Coating | A-ProMAX | Corner Radius (RE) / Chamfer Width (CHW) | 0.010″ |
Product Features
| Country of Origin | USA |
