CTPA10FLK177 QM3

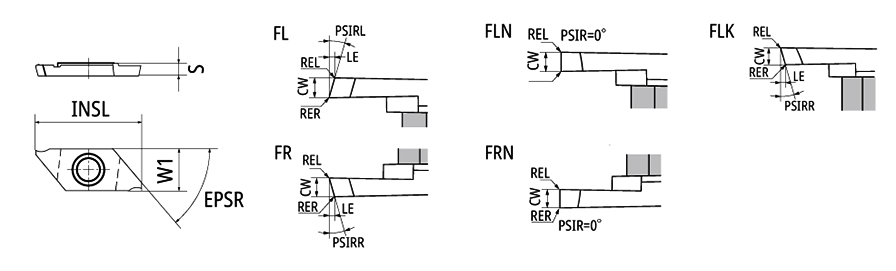

Parting Off Insert; 1 mm CW × 25 mm Length × 3.5 mm Thickness ; Carbide ; TiCN ; QM3
| Cutting Width (CW) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Thickness (S) | 3.5 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 16 Degrees |
| Insert Length (INSL) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 12 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | QM3 | Cutting Edge Angle Major Right Hand (PSIRR) | 0 Degrees |
| Application | | Inserts for miniature | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0
