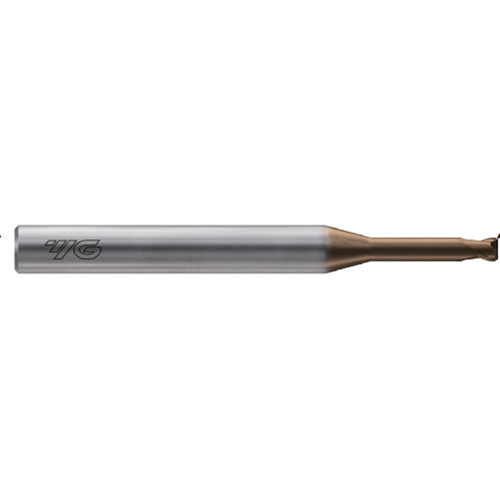

Corner Radius End Mill; 2 mm Dia. × 1.7 mm LOC × 4 mm Shank Dia. × 60 mm OAL ; 2 FL ; Carbide ; C-Coating ; Series HPI89
| Cutting Diameter (DC) | 2 mm | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 1.7 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 60 mm | Neck Diameter (DN) | 1.95 mm |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0787″ |
| Coating | C-Coating | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | HPI89 |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
