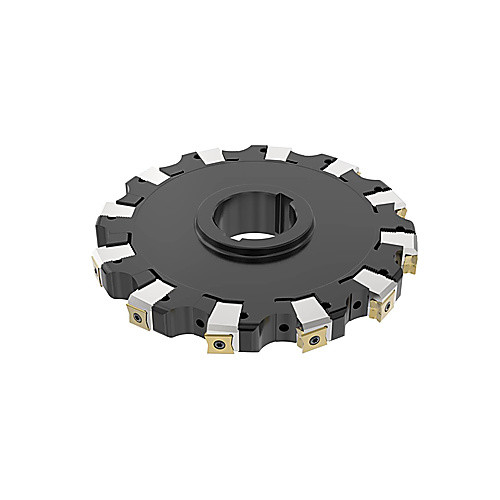

335.25-08.00-1316R-XN07 B
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8″ | Overall Length (OAL) | 1-1/4″ |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Neutral |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 | Master Insert Identification (MIID) | XNHQ0707.. |
| Depth of Cut Maximum (APMX) | 0.2717″ | Application | Side Milling |
| Cutting Depth Maximum (CDX) | 2.4134″ | Rotational Speed Maximum (RPMX) | 3900 |
| Connection Diameter Machine Side (DCONMS) | 2″ | Arbor Style | Arbor hole |
| Hub Diameter (DHUB) | 3″ | Tool Type | Half Side Disc Mill |
| Hub Thickness (THUB) | 1.25″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.2717″ | Series/List # | 335.25 |
| Cutting Width Maximum (CWX) | 0.2717″ | Style | Disc Mill |
| Cutting Width Minimum (CWN) | 0.2717″ | Body Material | Steel |
| Flute Count (NOF) | 12 |
Product Features
| Country of Origin | Sweden |
