RNGN45T-00420 A48-TURNING
Turning Insert; Round ; 0.25″ Length × 0.5″ IC × 1/4″ Corner Radius ; CS250 ; Ceramic ; Uncoated
Additional Tariff Surcharge of 8 %
| Application | Turning | Facing | Boring | Min D.O.C. | 0.03″ |
| Insert Style | RNGN | Depth of Cut Maximum (APMX) | 0.25″ |
| Corner Radius (RE) | 1/4″ | Number of Cutting Edges | 8 |
| Insert Size | 120700 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.25″ | Chip Breaker Type | Flat Top |

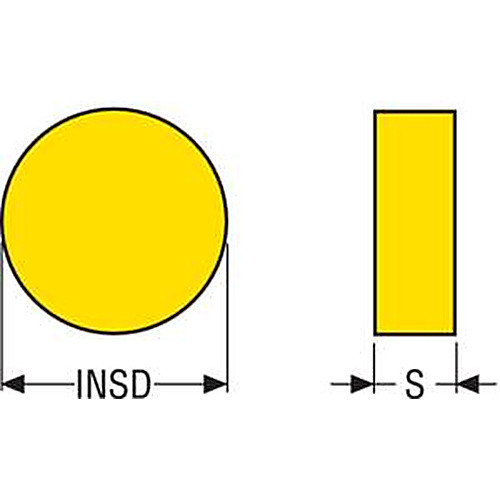

| Insert Thickness (S) | 0.3126″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.5″ | Shape | Round |
| Insert Included Angle (EPSR) | 360 | Series/List # | RNGN |
| Cutting Edge Material | Ceramic | Insert Width (W1) | 0.5″ |
| Coating | Uncoated | Body Material | Ceramic |
| Grade | CS250 | Cutting Edge Effective Length (LE) | 0.25″ |
| Tool Type | Turning |
Product Features
| Country of Origin | S.Korea |
