RCGX35T-00420 A48-TURNING

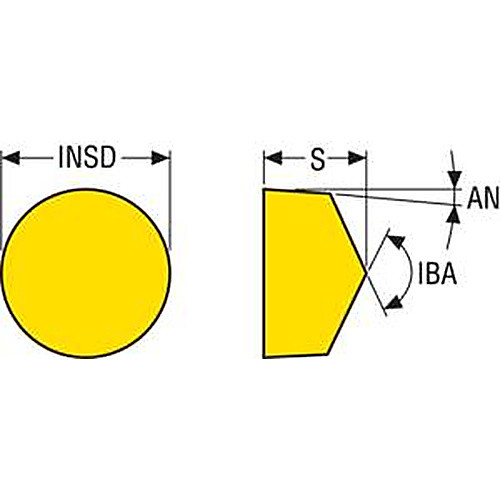

Turning Insert; Round ; 0.1875″ Length × 0.375″ IC × 3/16″ Corner Radius ; CS250 ; Ceramic ; Uncoated
Additional Tariff Surcharge of 8 %
| Application | Turning | Facing | Boring | Min D.O.C. | 0.03″ |
| Insert Style | RCGX | Depth of Cut Maximum (APMX) | 0.1875″ |
| Corner Radius (RE) | 3/16″ | Clearance Angle Major (AN) | 7 |
| Insert Size | 90700 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 0.1875″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.3126″ | Chip Breaker Type | Flat Top |
| Inscribed Circle Diameter (IC) | 0.375″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 360 | Shape | Round |
| Cutting Edge Material | Ceramic | Series/List # | RCGX |
| Coating | Uncoated | Insert Width (W1) | 0.375″ |
| Grade | CS250 | Body Material | Ceramic |
| Tool Type | Turning | Cutting Edge Effective Length (LE) | 0.1875″ |
Product Features
| Country of Origin | S.Korea |
