CNGN453S-00420 A48-TURNIN
Turning Insert; 80 Diamond ; 0.1524″ Length × 0.5″ IC × 0.0472″ Corner Radius ; CS250 ; Ceramic ; Uncoated
Additional Tariff Surcharge of 8 %

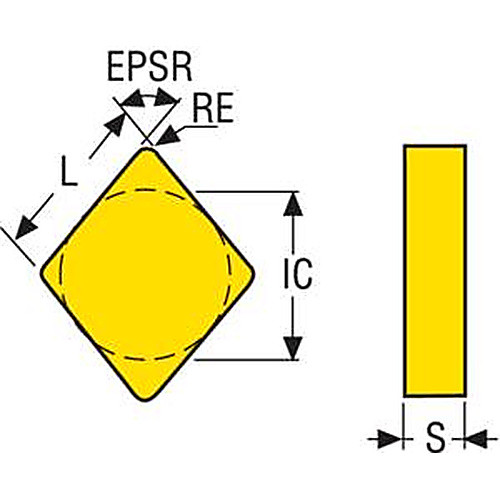

| Application | Turning | Facing | Boring | Min D.O.C. | 0.05″ |
| Insert Style | CNGN | Depth of Cut Maximum (APMX) | 0.1524″ |
| Corner Radius (RE) | 0.0472″ | Number of Cutting Edges | 4 |
| Insert Size | 433 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.1524″ | Chip Breaker Type | Flat Top |
| Insert Thickness (S) | 0.3126″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.5″ | Shape | 80° Diamond |
| Insert Included Angle (EPSR) | 80 | Series/List # | CNGN |
| Cutting Edge Material | Ceramic | Insert Width (W1) | 0.5079″ |
| Coating | Uncoated | Body Material | Ceramic |
| Grade | CS250 | Cutting Edge Effective Length (LE) | 0.1524″ |
| Tool Type | Turning |
Product Features
| Country of Origin | S.Korea |
