SPKT140523TN-ME10 A18-MOU
Milling Insert; 0.5512″ Length × 0.5512″ Width × 0.2189″ Thickness ; MS2050 ; Carbide ; TiAlN | NbN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Insert Style | SPKT |
| Application | High Feed Milling | Insert Size | 14 |

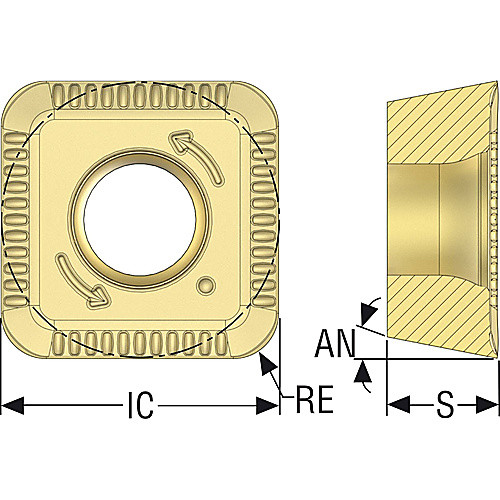

| Cutting Edge Length (L) | 0.5512″ | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.0906″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.5512″ | Chip Breaker Type | ME10 |
| Insert Width (W1) | 0.5512″ | Hole Diameter | 0.2205″ |
| Inscribed Circle Diameter (IC) | 0.5512″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.2189″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | PVD |
| Coating | | TiAlN | NbN | | Number of Cutting Edges | 4 |
| Grade | MS2050 | Measurement Type | Inch |
| Shape | Square |
Product Features
| Country of Origin | Sweden |
