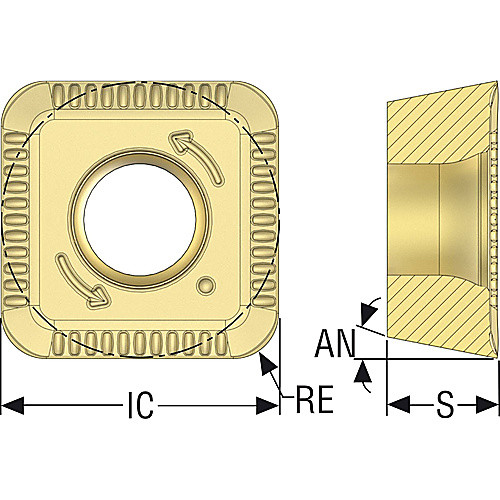

SPKT10T317TN-ME08 A18-MOU
Milling Insert; 0.3937″ Length × 0.3937″ Width × 0.1563″ Thickness ; MP2501 ; Carbide ; TiCN | Al2O3 | Chrome
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Insert Style | SPKT |
| Application | High Feed Milling | Insert Size | 10 |
| Cutting Edge Length (L) | 0.3937″ | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.0669″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.3937″ | Chip Breaker Type | ME08 |
| Insert Width (W1) | 0.3937″ | Hole Diameter | 0.1614″ |
| Inscribed Circle Diameter (IC) | 0.3937″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.1563″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | CVD |
| Coating | | TiCN | Al2O3 | Chrome | | Number of Cutting Edges | 4 |
| Grade | MP2501 | Measurement Type | Inch |
| Shape | Square |
Product Features
| Country of Origin | Sweden |
