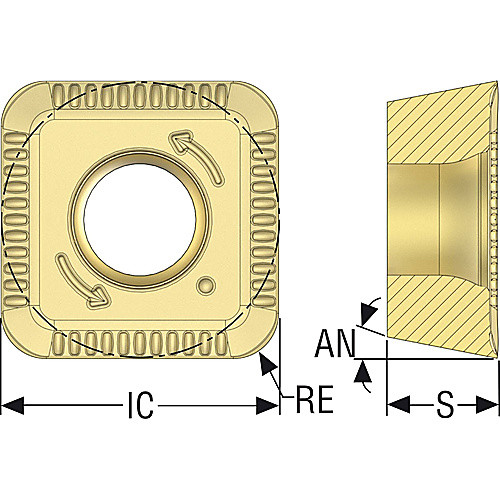

SPKT180630TN-ME10 A18-MOU
Milling Insert; 0.7087″ Length × 0.7087″ Width × 0.25″ Thickness ; MP3501 ; Carbide ; TiCN | Al2O3 | Chrome
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Insert Style | SPKT |
| Application | High Feed Milling | Insert Size | 18 |
| Cutting Edge Length (L) | 0.7087″ | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.1181″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.7087″ | Chip Breaker Type | ME10 |
| Insert Width (W1) | 0.7087″ | Hole Diameter | 0.2362″ |
| Inscribed Circle Diameter (IC) | 0.7087″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.25″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | CVD |
| Coating | | TiCN | Al2O3 | Chrome | | Number of Cutting Edges | 4 |
| Grade | MP3501 | Measurement Type | Inch |
| Shape | Square |
Product Features
| Country of Origin | Sweden |
