XNXU050516TN8-M07 A24-DIS
Milling Insert; 0.428″ Length × 0.403″ Width × 0.2047″ Thickness ; MP2501 ; Carbide ; TiCN | Al2O3 | Chrome
Additional Tariff Surcharge of 8 %

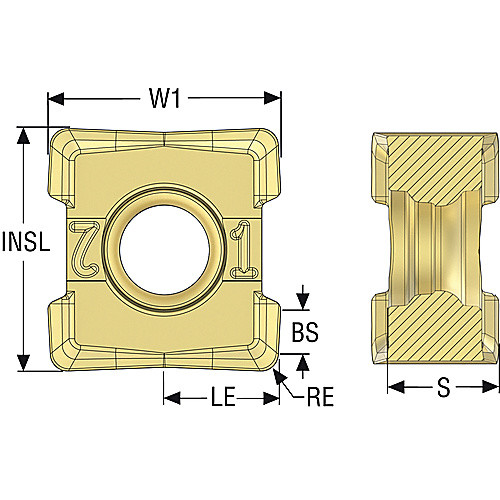

| Applicable Material | | Steel | | Shape | Rectangle |
| Application | Disc Milling | Insert Style | XNXU |
| Cutting Edge Length (L) | 0.428″ | Insert Size | 5 |
| Corner Radius (RE) | 0.063″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.1969″ | Chip Breaker Type | M07 |
| Insert Width (W1) | 0.403″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.403″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.2047″ | Coating Process | CVD |
| Wiper Edge Length (BS) | 0.0472″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Effective Length (LE) | 0.1969″ |
| Coating | | TiCN | Al2O3 | Chrome | | Measurement Type | Inch |
| Grade | MP2501 |
Product Features
| Country of Origin | Sweden |
