XNHQ070716TN8-M11 A24-DIS
Milling Insert; 0.5366″ Length × 0.2953″ Width x " Thickness ; MK2050 ; Carbide ; TiSiN | TiAlN
Additional Tariff Surcharge of 8 %

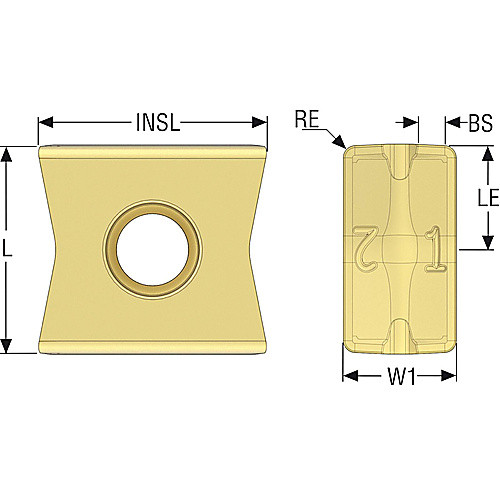

| Applicable Material | | Cast Iron | Hard Materials | | Shape | Rectangle |
| Application | Disc Milling | Insert Style | XNHQ |
| Cutting Edge Length (L) | 0.5366″ | Insert Size | 7 |
| Corner Radius (RE) | 0.063″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.2717″ | Chip Breaker Type | M11 |
| Insert Width (W1) | 0.2953″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.2953″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.2953″ | Coating Process | PVD |
| Wiper Edge Length (BS) | 0.0394″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Effective Length (LE) | 0.2717″ |
| Coating | | TiSiN | TiAlN | | Measurement Type | Inch |
| Grade | MK2050 |
Product Features
| Country of Origin | Sweden |
