OOMT0605ZZSR-MHF-M16 A16-
Milling Insert; 0.1575″ Length × 0.622″ Width × 0.2189″ Thickness ; MP2501 ; Carbide ; TiCN | Al2O3 | Chrome
Additional Tariff Surcharge of 8 %

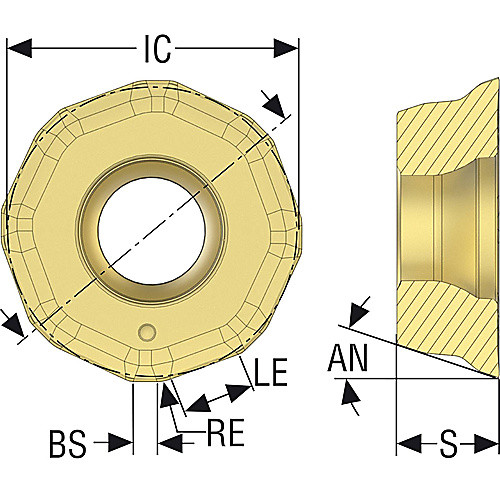

| Applicable Material | | Steel | | Insert Style | OOMT |
| Application | Face Milling | Insert Size | 6 |
| Cutting Edge Length (L) | 0.1575″ | Clearance Angle Major (AN) | 18 Degrees |
| Corner Radius (RE) | 0.0787″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.1575″ | Chip Breaker Type | MHF-M16 |
| Insert Width (W1) | 0.622″ | Hole Diameter | 0.2264″ |
| Inscribed Circle Diameter (IC) | 0.622″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.2189″ | Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.0512″ | Coating Process | CVD |
| Insert Included Angle (EPSR) | 135 Degrees | Number of Cutting Edges | 8 |
| Coating | | TiCN | Al2O3 | Chrome | | Cutting Edge Effective Length (LE) | 0.1575″ |
| Grade | MP2501 | Measurement Type | Inch |
| Shape | Octagon |
Product Features
| Country of Origin | Sweden |
