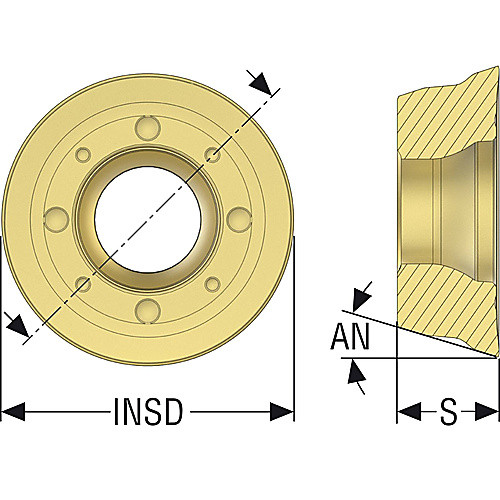

ROMT1605M0T-8-M14 A16-OCT
Milling Insert; 0.6299″ Length × 0.6299″ Width × 0.2189″ Thickness ; MP2501 ; Carbide ; TiCN | Al2O3 | Chrome
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Insert Style | ROMT |
| Application | Disc Milling|Copy Milling | Insert Size | 16 |
| Cutting Edge Length (L) | 0.6299″ | Clearance Angle Major (AN) | 18 Degrees |
| Corner Radius (RE) | 0.315″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.315″ | Chip Breaker Type | M14 |
| Insert Width (W1) | 0.6299″ | Hole Diameter | 0.2264″ |
| Inscribed Circle Diameter (IC) | 0.6299″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.2189″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 360 Degrees | Coating Process | CVD |
| Coating | | TiCN | Al2O3 | Chrome | | Number of Cutting Edges | 8 |
| Grade | MP2501 | Measurement Type | Inch |
| Shape | Round |
Product Features
| Country of Origin | Sweden |
