OOMT060510SN-ME12 A16-OCT
Milling Insert; 0.2244″ Length × 0.6213″ Width × 0.2189″ Thickness ; MP3501 ; Carbide ; TiCN | Al2O3 | Chrome
Additional Tariff Surcharge of 8 %

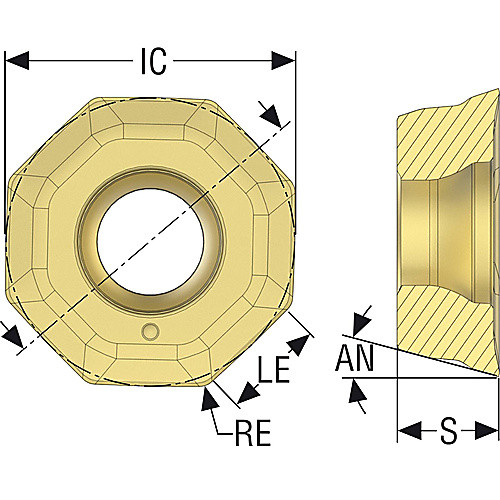

| Applicable Material | | Steel | | Insert Style | OOMT |
| Application | Face Milling | Insert Size | 6 |
| Cutting Edge Length (L) | 0.2244″ | Clearance Angle Major (AN) | 18 Degrees |
| Corner Radius (RE) | 0.0394″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.2244″ | Chip Breaker Type | ME12 |
| Insert Width (W1) | 0.6213″ | Hole Diameter | 0.2264″ |
| Inscribed Circle Diameter (IC) | 0.6213″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.2189″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 135 Degrees | Coating Process | CVD |
| Coating | | TiCN | Al2O3 | Chrome | | Number of Cutting Edges | 8 |
| Grade | MP3501 | Cutting Edge Effective Length (LE) | 0.2244″ |
| Shape | Octagon | Measurement Type | Inch |
Product Features
| Country of Origin | Sweden |
