RPKW2006M0-8-MD10 A18-MOU
Milling Insert; 0.7874″ Length × 0.7874″ Width × 0.25″ Thickness ; MP3000 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %

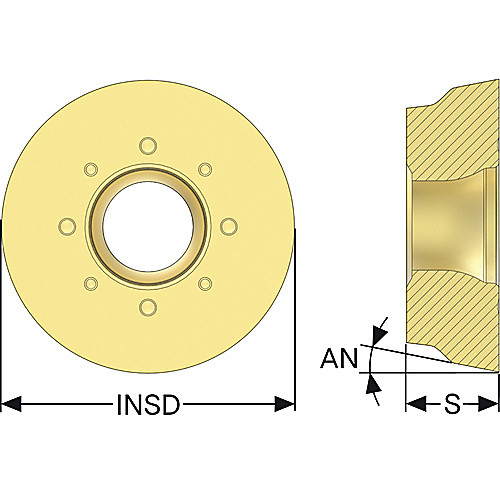

| Applicable Material | | Steel | Hard Materials | | Insert Style | RPKW |
| Application | Disc Milling|Copy Milling | Insert Size | 20 |
| Cutting Edge Length (L) | 0.7874″ | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.3937″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.3937″ | Chip Breaker Type | MD10 |
| Insert Width (W1) | 0.7874″ | Hole Diameter | 0.2397″ |
| Inscribed Circle Diameter (IC) | 0.7874″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.25″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 360 Degrees | Coating Process | PVD |
| Coating | TiAlN | Number of Cutting Edges | 8 |
| Grade | MP3000 | Measurement Type | Inch |
| Shape | Round |
Product Features
| Country of Origin | Sweden |
