XOMX160524TR-ME11 A17-TUR
Milling Insert; 0.6063″ Length × 0.4016″ Width × 0.2335″ Thickness ; MS2050 ; Carbide ; TiAlN | NbN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Insert Style | XOMX |
| Application | Square Shoulder | Insert Size | 16 |

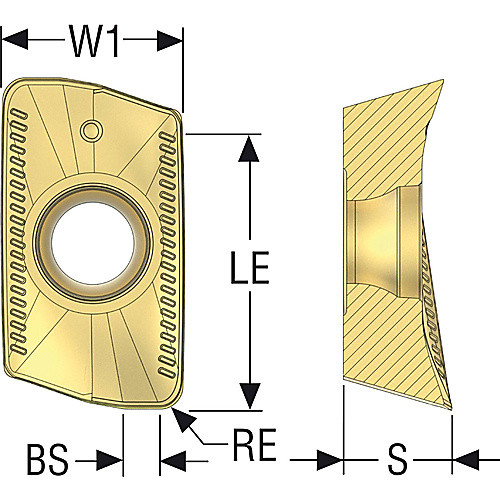

| Cutting Edge Length (L) | 0.6063″ | Clearance Angle Major (AN) | 15.2 Degrees |
| Corner Radius (RE) | 0.0945″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.6063″ | Chip Breaker Type | ME11 |
| Insert Width (W1) | 0.4016″ | Hole Diameter | 0.1772″ |
| Inscribed Circle Diameter (IC) | 0.4016″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.2335″ | Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.0709″ | Coating Process | PVD |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
| Coating | | TiAlN | NbN | | Cutting Edge Effective Length (LE) | 0.6063″ |
| Grade | MS2050 | Measurement Type | Inch |
| Shape | Parallelogram |
Product Features
| Country of Origin | Sweden |
