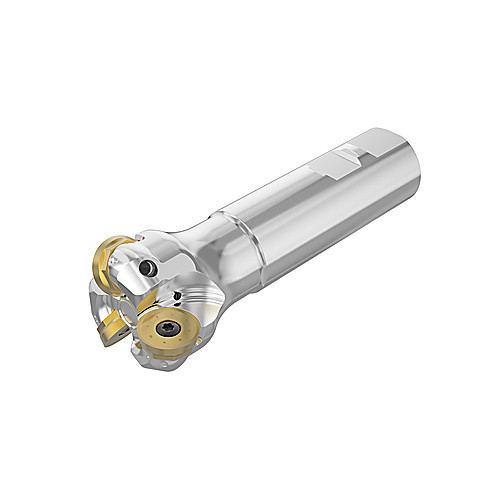

R217.29I-3250.3-10.3.080A
Indexable End Mill; 30 mm Dia. × 10 mm LOC × 32 mm Shank Dia. × 139.50 mm OAL × 104 mm LU ; 3 FL ; Weldon Shank ; Series R217.29I
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 30 mm | Tool Type | Face Mill |
| Cutting Diameter (DC) | 30 mm | Usable Length (LU) | 104 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 10 mm | Coolant Supply Property (CSP) | Internal |
| Overall Length (OAL) | 139.5 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Series/List # | R217.29I |
| Ramping Angle Maximum (RMPX) | 9.57 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 86.50 mm |
| Master Insert Identification (MIID) | RP..2006 | Protruding Length (LPR) | 78.50 mm |
Product Features
| Country of Origin | India |
