R217.29I-2050.RE-10-3A B1

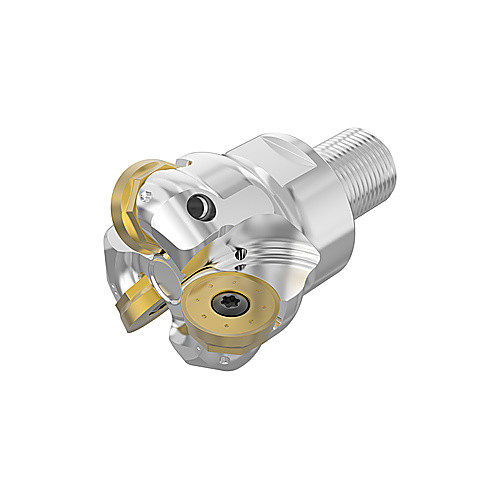

Indexable End Mill; 30 mm Dia. × 10 mm LOC x M20 Shank Dia. × 72 mm OAL × 45 mm LU ; 3 FL ; Combimaster Shank ; Series R217.29I
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 30 mm | Tool Type | Copy Mill |
| Cutting Diameter (DC) | 30 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M20 |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 45 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 72 mm | Coolant Supply Property (CSP) | Internal |
| Shank Type | Combimaster | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 9.57 Degrees | Series/List # | R217.29I |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | M20 | Body Material | Steel |
| Master Insert Identification (MIID) | RP..2006 |
Product Features
| Country of Origin | India |
