R217.29I-1640.RE-10-2A B1

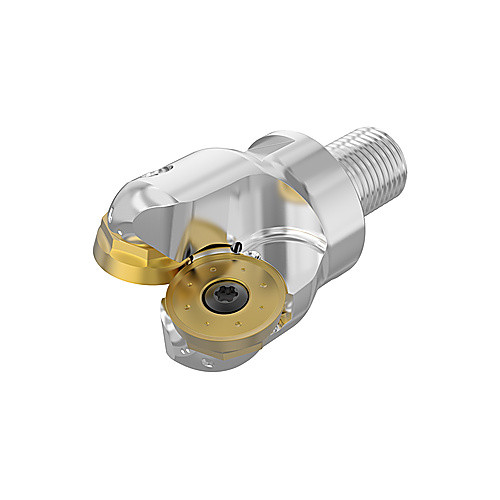

Indexable End Mill; 20 mm Dia. × 10 mm LOC x M16 Shank Dia. × 62.75 mm OAL × 40 mm LU ; 2 FL ; Combimaster Shank ; Series R217.29I
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 20 mm | Tool Type | Copy Mill |
| Cutting Diameter (DC) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 40 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 62.75 mm | Coolant Supply Property (CSP) | Internal |
| Shank Type | Combimaster | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 15.57 Degrees | Series/List # | R217.29I |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | M16 | Body Material | Steel |
| Master Insert Identification (MIID) | RP..2006 |
Product Features
| Country of Origin | India |
