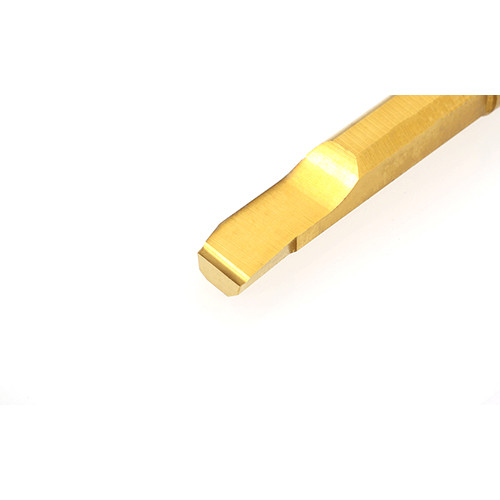

SBFS040R015S ZM3
Boring Bar; 0.157″ Shank Dia. × 0.165″ Min Bore Dia. × 0.018″ Max Bore Depth × 0.7874″ LU × 2.362″ LF ; 0.0059″ Corner Radius ; Carbide ; TiN

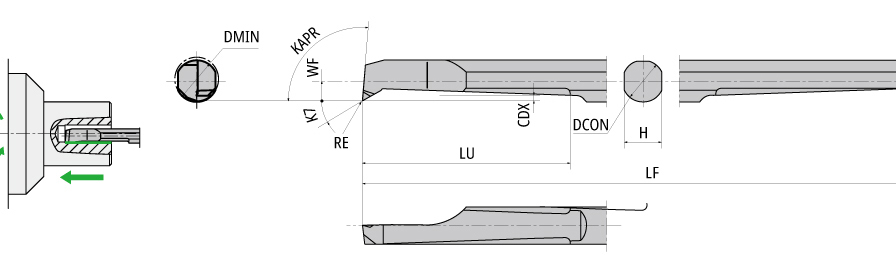

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Cutting Depth Maximum (CDX) | 0.018″ |
| Minimum Bore Diameter (DMIN) | 0.165″ | Functional Width (WF) | 0.075″ |
| Functional Length (LF) | 2.362″ | Usable Length (LU) | 0.7874″ |
| Coating | TiN | Shank Height (H) | 0.1417″ |
| Grade | ZM3 | Body Material | Carbide |
| Application | | Inserts for miniature | | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Corner Radius (RE) | 0.0059″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0
