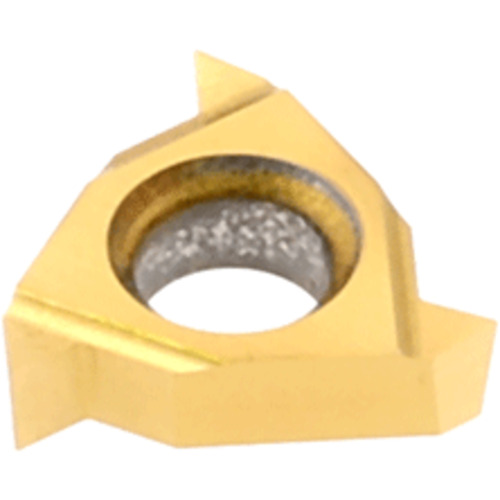

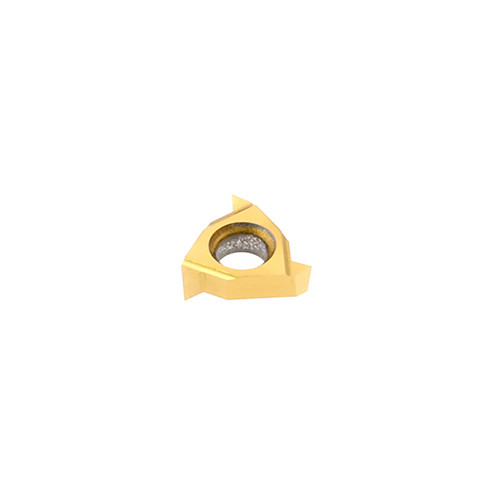

TMN06FR03 ZM3
Laydown Threading Insert ; 0.1563″ IC ; Carbide ; ZM3 ; TiN

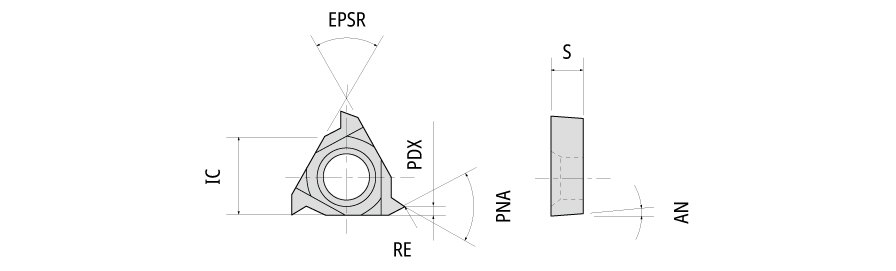

| Inscribed Circle Diameter (IC) | 0.1563″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0012″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.063″ | Thread Pitch Minimum (TPN) | 0.4 mm |
| Grade | ZM3 | Thread Pitch Maximum (TPX) | 0.75 mm |
| Coating | TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Profile Included Angle (PNA) | 60 Degrees |
| Application | | Inserts for miniature | | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
