DCGT32.508RS QM3

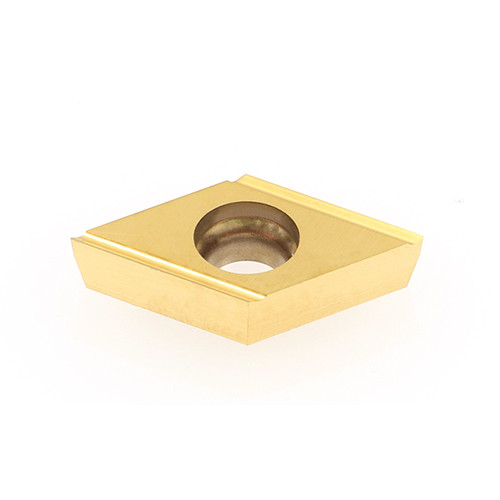

Turning Insert; DCGT32.508RS QM3

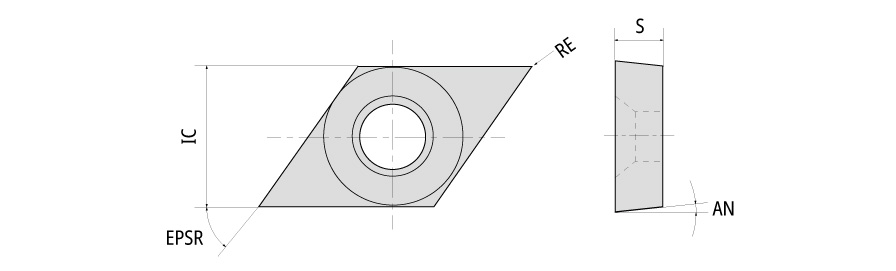

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Coating | TiCN |
| Corner Radius (RE) | 0.0079″ | Grade | QM3 |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.01
