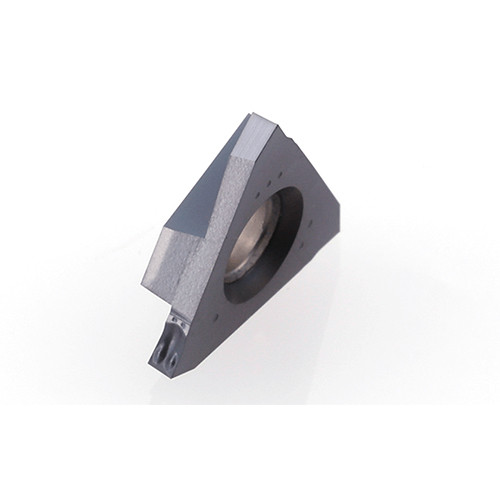

GTMH32200RGX02 ST4

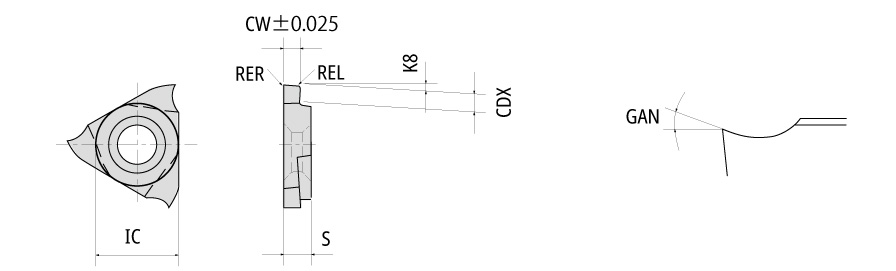

Grooving Insert; 0.0787″ CW × 0.118″ Max Depth × 1/8″ Thickness × 3/8″ IC ; Carbide ; ST4 ; CrAlN
| Cutting Width (CW) | 0.0787″ | Grade | ST4 |
| Cutting Depth Maximum (CDX) | 0.118″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 1/8″ | Application | | Inserts for miniature | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Stainless Steel | |
| Insert Rake Angle (GAN) | 17 Degrees | Measurement Type | Inch |
| Coating | CrAlN | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0
