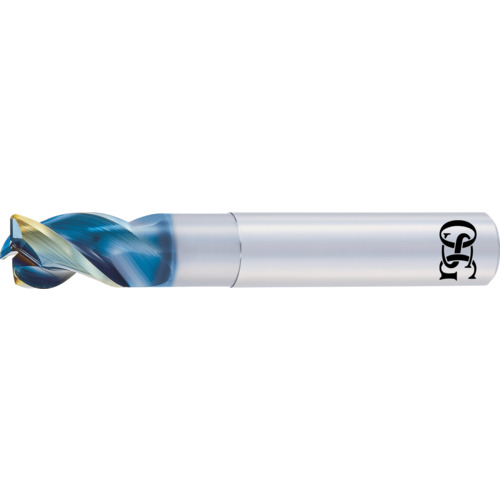

3/16X9/32XR0.030 3FL
| Cutting Diameter (DC) | 3/4″ | Neck Length (LN) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Shank Standard | h6 |
| Depth of Cut Maximum (APMX) | 9/32″ | Body Material | Carbide |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.75″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | DLC | Series/List # | 8675 |
| Flute Count (NOF) | 3 | Shank Size (SS) | 3/16″ |
| Flute Helix Angle (FHA) | 41 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Corner Radius | Center Cutting | Yes |
| Neck Diameter (DN) | 0.176″ | Cutting Diameter Tolerance | +0 / -0.0008″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.04
