2.5MMX3.8MM 3FL AE-TS-N

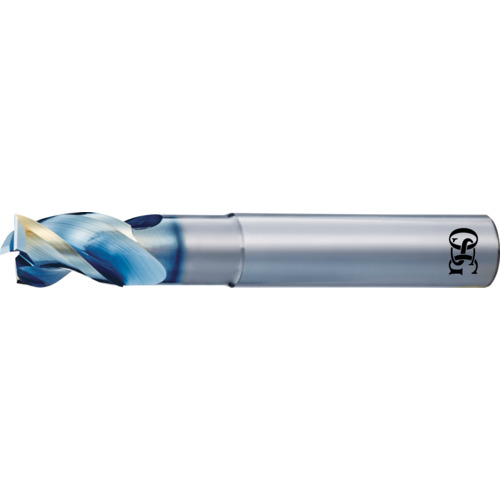

SQ End Mill; 2.5 mm Dia. × 3.8 mm LOC × 4 mm Shank Dia. × 45 mm OAL ; 3 FL ; Carbide ; DLC ; Series 8735
| Cutting Diameter (DC) | 2.5 mm | Neck Length (LN) | 10.6 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Shank Standard | h6 |
| Depth of Cut Maximum (APMX) | 3.8 mm | Body Material | Carbide |
| Overall Length (OAL) | 45 mm | Decimal Equivalent | 0.0984″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | DLC | Series/List # | 8735 |
| Flute Count (NOF) | 3 | Shank Size (SS) | 4 mm |
| Flute Helix Angle (FHA) | 41 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
| Neck Diameter (DN) | 2.4 mm | Cutting Diameter Tolerance | +0.0000/-0.0020″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.02
