3/16X7/16 2FL 0.015CR

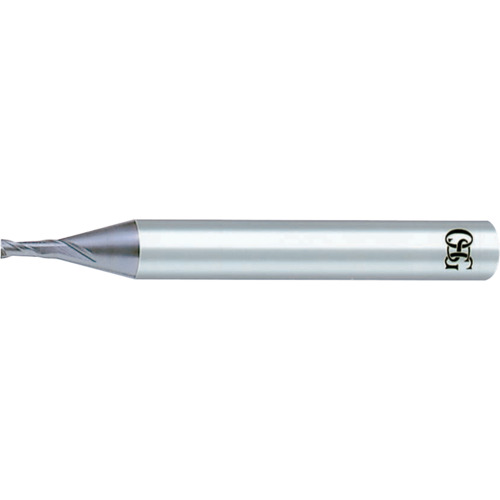

SQ End Mill; 3/16″ Dia. × 7/16″ LOC × 3/16″ Shank Dia. × 3-1/8″ OAL ; 2 FL ; Carbide ; WXL ; Series 3870
| Cutting Diameter (DC) | 3/16″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Decimal Equivalent | 0.1875″ |
| Depth of Cut Maximum (APMX) | 7/16″ | Measurement Type | Inch |
| Overall Length (OAL) | 3-1/8″ | Series/List # | 3870 |
| Cutting Edge Material | Carbide | Shank Size (SS) | 3/16″ |
| Coating | WXL | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius | Cutting Diameter Tolerance | +0 / -0.0008″ |
| Shank Standard | h6 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.06
