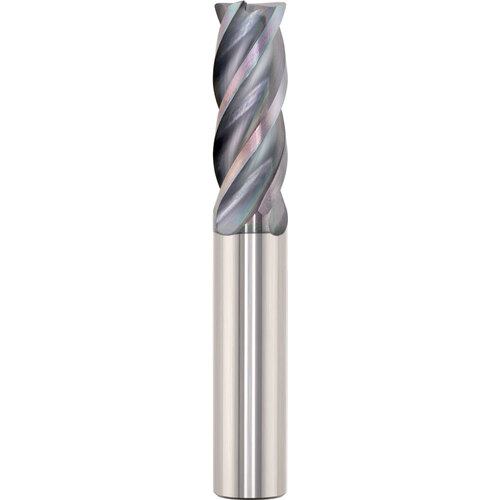

SGS 8MM 4FL CR EM
SQ End Mill; 8 mm Dia. × 63 mm OAL ; 4 FL ; MN
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 19 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 63 mm | Decimal Equivalent | 0.315″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | MEGACOAT NANO | Series/List # | ZR |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.0197″ |
| Flute Helix Angle (FHA) | 34-38 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.001
