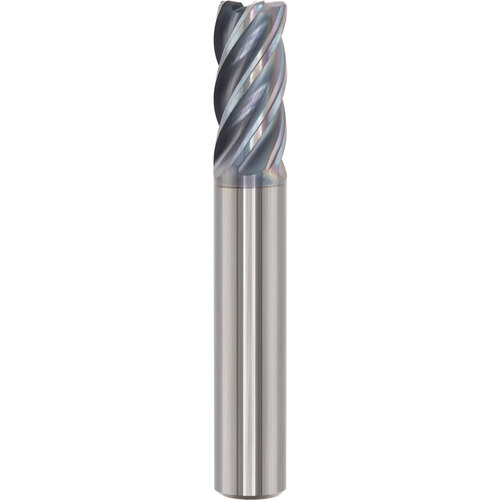

SGS 6MM 5FL CR EM
SQ End Mill; 6 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.3 mm RE ; 0.0118″ RE ; 5 FL ; Carbide ; MEGACOAT NANO ; Series Z5C
| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 13 mm | Corner Radius (RE) | 0.3 mm |
| Overall Length (OAL) | 57 mm | Decimal Equivalent | 0.2362″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | MEGACOAT NANO | Series/List # | Z5C |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.0118″ |
| Flute Helix Angle (FHA) | 37 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.051
