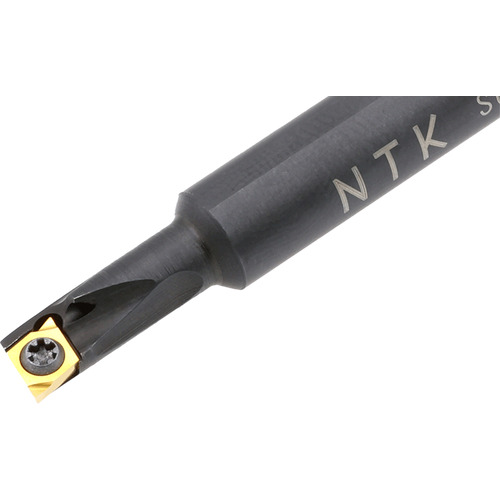

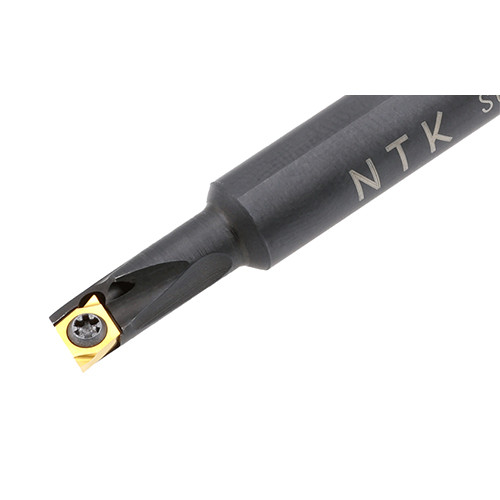

S08G-SEXRRT3D06-OH

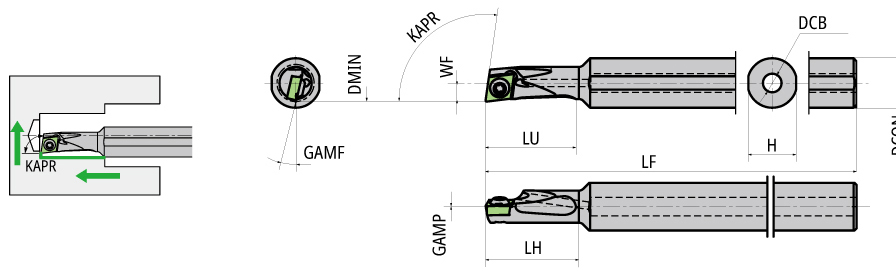

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Application | | Boring | |
| Functional Length (LF) | 3.543″ | Rake Angle Axial (GAMP) | .0 deg |
| Head Length (LH) | 0.591″ | Rake Angle Radial (GAMF) | 13.0 deg |
| Shank Height (H) | 0.303″ | Body Material | Steel |
| Functional Width (WF) | 0.118″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.236″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0
