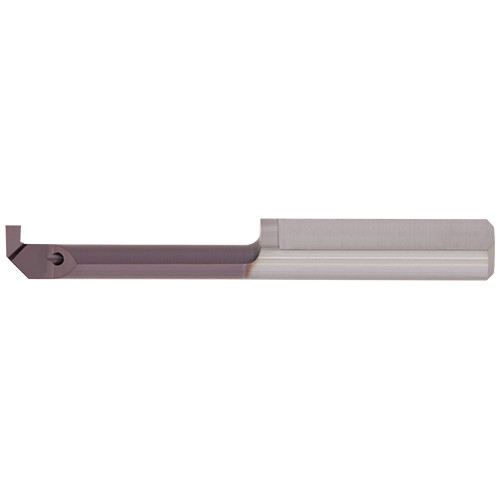

TFGL07140200-D068 AC22
| Connection Diameter Machine Side (DCONMS) | 7 mm | Front End Width (a) | 6.2 mm |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Corner Radius (RE) | 0.1 mm |
| Functional Length (LF) | 30 mm | Cutting Depth Maximum (CDX) | 2.5 mm |
| Head Length (LH) | 14 mm | Functional Width (WF) | 2.7 mm |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | AC22 | Measurement Type | Metric |
| Application | | Int. Grooving | | Overall Length (OAL) | 30 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Width (CW) | 2 mm |
Product Features
| Family Description | MicroCut Left Hand Bars with Internal Coolant for Internal Grooving | Country of Origin | Israel |
Shipping Info
Package Weight
0.029
