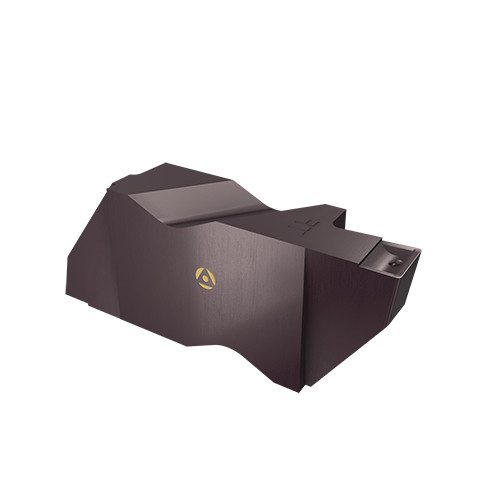

FLG-3M220R-CB C3
| Cutting Width (CW) | 2.2 mm | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.19 mm | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 4.57 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 4.95 mm | Chip Breaker Type | CB |
| Insert Rake Angle (GAN) | 0 Degrees | Measurement Type | Metric |
| Coating | Uncoated | Min. Grooving Feed (fg(min)) | 0.08 mm/rev |
| Grade | C3 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 10.29 mm |
| Cutting Edge Material | Carbide | Height | 8.75 mm |
Product Features
| Family Description | Internal and External Grooving #3 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.000
