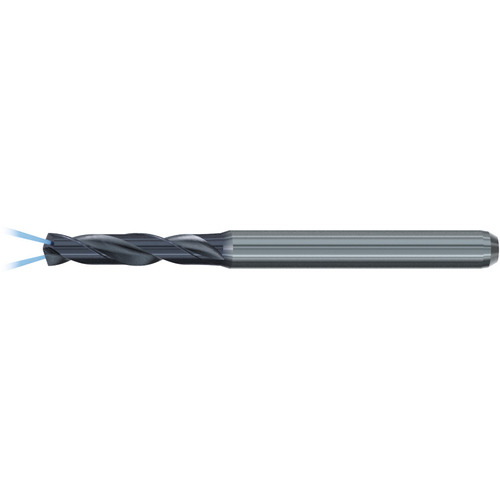

 EF-Drill Micro-STEEL-6xD-HA-IK-2FF-TIALN/(3D) EF-Drill Micro-STEEL-6xD-HA-IK-2FF-TIALN_1_Enlarge.jpg)
 EF-Drill Micro-STEEL-6xD-HA-IK-2FF-TIALN/(3D) EF-Drill Micro-STEEL-6xD-HA-IK-2FF-TIALN_Enlarge.jpg)
Solid Carbide Drill; 2.55 mm Dia. × 4 mm Shank Dia. × 65 mm OAL ; 140 Degrees ; 6xD ; TiAlN T99
SC Drill; 2.55 mm Dia. × 4 mm Shank Dia. × 65 mm OAL × 22.5 mm LCF ; 140 Degrees ; 6xD ; TiAlN ; Series TE213324
| Drill Bit Size / Cutting Diameter (DC) | 2.55 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.55 mm | Series/List # | TE213324 |
| Length Group | 6xD | Usable Length (LU) | 20.1 mm |
| Coating | TiAlN | Length Chip Flute (LCF) | 22.5 mm |
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | | Overall Length (OAL) | 65 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Feature | • High performance carbide design for production machining. • Internal cooling channels for high process reliability. • TIALN-T99 coated for increased heat and wear resistance |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | HA |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | Micro-Drill |
Product Features
| Country of Origin | Germany |
