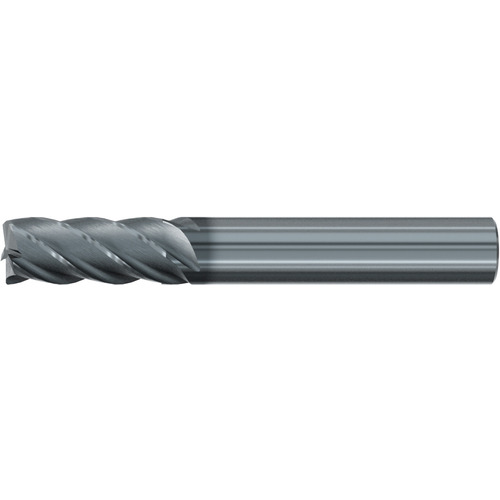

1/4 TOP CUT VAR SC 5FL
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.005″ RE ; 5 FL ; Carbide ; AlCr ; Series 2946L
| Cutting Diameter (DC) | 1/4″ | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Standard |
| Overall Length (OAL) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlCr | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 2946L |
| Flute Helix Angle (FHA) | | 35 Degrees | 38 Degrees | | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
| Applicable Material | | Universal Materials | | Trade Name | Top-CUT VAR |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 5 flute design with Weldon flat for roughing and finishing in almost all materials • Special tool geometry enable low-vibration machining and universal use in almost all materials and milling processes • Wear resistant sub-micro grain carbide substrate • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | USA |
Shipping Info
Package Weight
0.063
