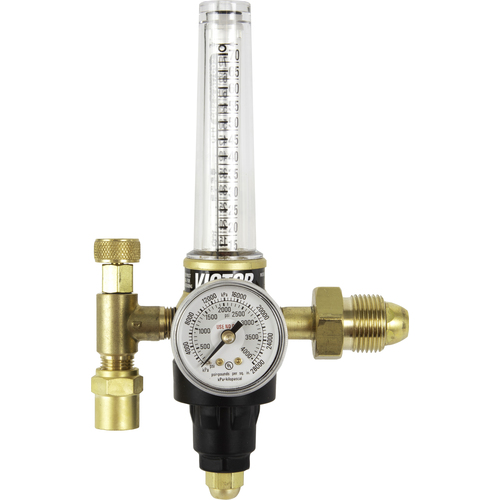

‎Victor HRF2435P-580 Pro Series Flowmeter regulator, Argon/CO2, CGA 580 with 10 ft. Hose

‹ ›

‎Victor HRF2435P-580 Pro Series Flowmeter regulator, Argon/CO2, CGA 580 with 10 ft. Hose

Item # 368620A

Brand: Esab

MFG #: ‎0781-3657

Legacy Part #: ES0207813657

Trade Name: HRF2400 Pro

Quantity Available

loading...

Type

Flowmeter Regulator

Delivery Rate

‎0-70 CFH

Gas Service

Argon|CO2

Features

Max Inlet Pressure: 3000 psig

Inlet Connection

CGA-580

Application

| General Manufacturing and Construction | Aerospace | Shipbuilding and Repair | Oil and Gas | Power Generation |

Outlet Connection

CGA-032/022

Product Features

Remarks

70 CFH Flow Rate to support MIG / TIG and other high-flow applications
Ideal for all applications where superior dependability is needed
Newly designed flow tube with improved scale visibility
Superior CO2 performance for longer CO2 application run time
Accurate, consistent flow delivery over the life of the cylinder
Regulator/flowmeter combination in one compact unit
Diaphragm style regulator with fabric-reinforced neoprene diaphragm
Back pressure compensated
Precision needle valve, ensuring an accurate flow rate, even when exceeding 50 CFH
External self-reseating pressure relief valve (not designed to protect downstream equipment)
Safety overpressure burst mechanism built into flow tube for added safety
Machined brass body & die-cast housing cap
Sintered inlet filter bronze
Third-party ETL listed to UL Standard 252

Country of Origin

Mexico
