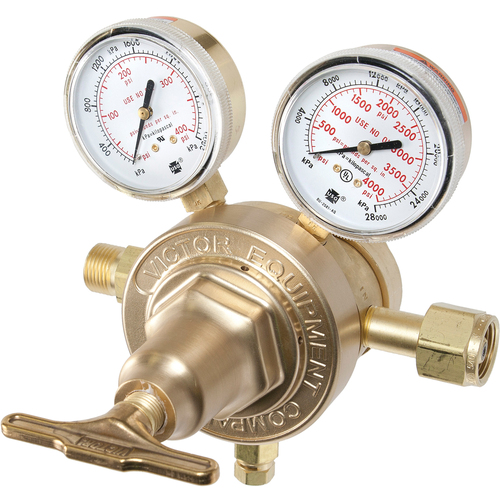

‎Victor Model VTS700A-510 Extra High Capacity Acetylene Two Stage Regulator, CGA-510

Item # 367058A

Brand: Esab

MFG #: ‎0780-0984

Legacy Part #: ES0207800984

Type

Two Stage Regulator

Workload

Extra High Capacity

Gas Service

Acetylene|C2H2

Delivery Rate

‎2-15 psig

Inlet Connection

CGA-510

Gauge Diameter

‎2-1/2″

Outlet Connection

‎7/8″-14 (LH Male)

Application

| Applications requiring precise and constant outlet pressure with a high flow rate up to 8000 scfh |

Product Features

Remarks

Brass adjusting screw with forged T-Handle
Delrin insert bushing for durability, easier adjusting
Die forged brass spring housing cap provides greater strength and durability
Stem type seat mechanism
Stainless steel diaphragm gives accurate long lasting service
Stainless ball in key for easy adjustment
Adjusting spring pretested for quality assurance
Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range
Precision machined nozzle for optimum flow control
Sintered inlet filter electroless nickel plated bronze

Country of Origin

Mexico

Package Weight
