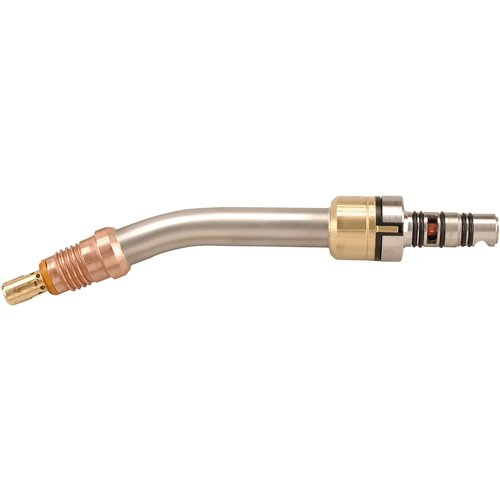

Tweco Robotic Conductor Tube, WC-QTRW6645

‹ ›

Tweco Robotic Conductor Tube, WC-QTRW6645

Item # 367103A

Brand: Esab

MFG #: 16631702

Legacy Part #: ES0216631702

Trade Name: Tweco

Quantity Available

loading...

Type

Conductor Tube

Product Features

Remarks

‎

Extremely rigid and reliable
Inner tube machined from an brass/copper duplex extrusion providing excellent electrical conductivity and water passages to keep the conductor tube cool in operation
Conductor tube is positively located in the torch body by the use of two (2) stainless steel alignment pins
Back end of conductor tube is made from a solid stainless steel alloy wear surface in the area where the tube is drawn and locked into place
Stainless steel outer jacket insulated from the inner tube by a teflon sleeve providing excellent di-electric properties
Standard QTRW54-16 Gas Diffuser to accept threaded 16RS, 16RZ and 16S series contact tips
Outer jacket contains a nozzle housing with a thermally conductive insulator to draw the heat out of the nozzle

Country of Origin

USA
