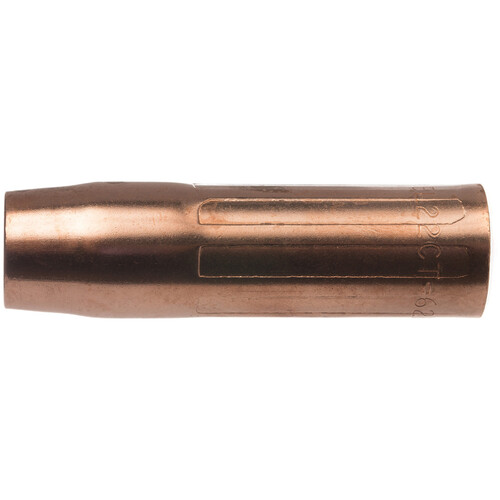

Tweco 3.018″ 0.625″ Bore EL22CT Series Nozzle

‹ ›

Tweco 3.018″ 0.625″ Bore EL22CT Series Nozzle

Item # 363455A

Brand: Esab

MFG #: 12601637

Legacy Part #: ES0212601637

Quantity Available

loading...

Type

Nozzle

Wire Size

Flush to 1/16″

Model No

EL22CT Series

Style

Flush | Recessed

Gun No

Tweco | Tweco Eliminator

Product Features

Remarks

Easy identification - part no rolled stamped on the outside surface
3-piece design - does not require an additional insulator
Nozzle housing - cut and formed from 122 dhp copper alloy tubing
Nozzle insulator - made from g7 silicone material, providing the electrical insulation needed from the gas diffuser
Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the gas diffuser
Threads onto a standard EL gas diffuser
Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
Flush Tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, This brings the tip closer to the work piece
Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint. However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace

Country of Origin

Mexico
