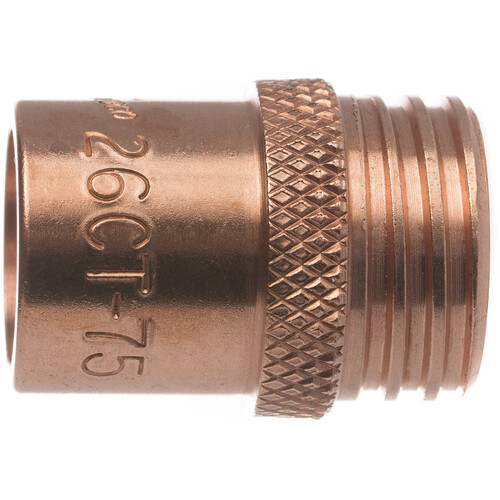

Tweco 1.46″ 0.75″ Bore 26CT Series Nozzle

‹ ›

Tweco 1.46″ 0.75″ Bore 26CT Series Nozzle

Item # 363419A

Brand: Esab

MFG #: 12601430

Legacy Part #: ES0212601430

Quantity Available

loading...

Type

Nozzle

Wire Size

1/8″

Model No

26CT Series

Style

Recessed

Gun No

Tweco | Tweco No. 6

Product Features

Remarks

Easy identification - part no rolled stamped on the outside surface
Two-piece nozzle design - nozzle housing threads onto the nozzle insulator
Nozzle housing and nozzle insulator sold separately
A separate nozzle insulator is used to thread onto the conductor tube and provide insulation to the nozzle
Machined from a solid copper alloy bar that assures consistent dimensional stability and efficient dissipation of heat
Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
Flush Tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, This brings the tip closer to the work piece
Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint. However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace

Country of Origin

USA
