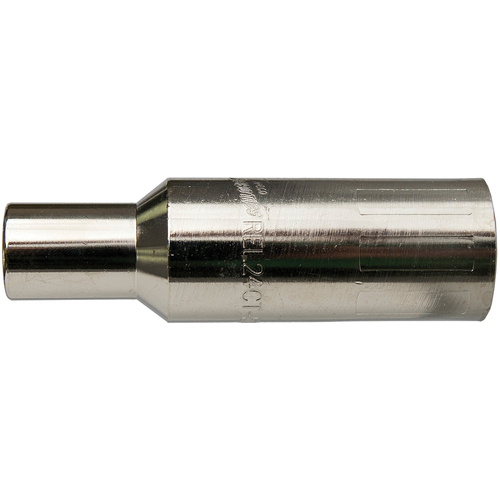

Tweco Robotic Nozzle W/C, REL24CT62, Package of 2

‹ ›

Tweco Robotic Nozzle W/C, REL24CT62, Package of 2

Item # 363387A

Brand: Esab

MFG #: 12401306

Legacy Part #: ES0212401306

Quantity Available

loading...

Type

Nozzle

Style

5/32″ Recess

Model No

REL24 Series

Standard Pack

2

Gun No

Eliminator | Spray Master | Robotic | REL24 Series

Product Features

Remarks

Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot and stitch)
Flush Tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths. This brings the tip closer to the work piece
Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint. However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace
Straight ID bore at the front end of the nozzle - allows proper cleaning of the side walls to ensure good gas flow through the nozzle
Ideal nozzle to use with a nozzle cleaning station generally incorporated in robotic weld cells
3-piece nozzle design, includes: Nozzle Housing - Machined from tellurium copper alloy bar
Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the gas diffuser
Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
Easy identification - Part No. rolled stamped on the outside surface
Designed to work with robotic/fixed automation MIG guns
Bottle shaped geometry
3-piece design - does not require an additional insulator

Country of Origin

USA

Shipping Info

Package Weight

0
