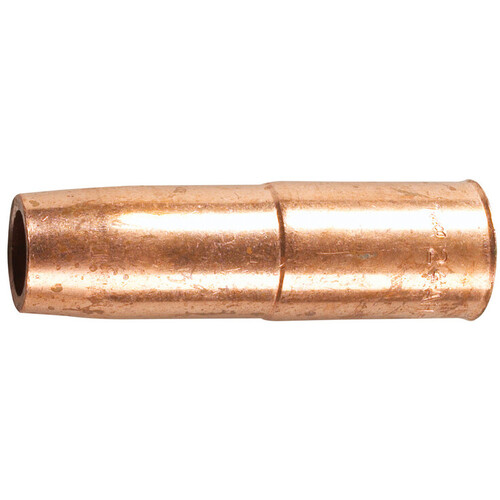

Tweco 3.42″ 0.625″ Bore 24A Series Nozzle

‹ ›

Tweco 3.42″ 0.625″ Bore 24A Series Nozzle

Item # 363379A

Brand: Esab

MFG #: 12401220

Legacy Part #: ES0212401220

Quantity Available

loading...

Type

Nozzle

Wire Size

5/8″

Model No

24A Series

Style

Flush | Protruding | Recessed

Gun No

Tweco | Tweco No. 3 | Tweco No. 4

Product Features

Remarks

‎

Easy identification - part no rolled stamped on the outside surface
Nozzle housing - cut and formed from 122 dhp copper alloy tubing
Nozzle slides over the standard nozzle insulator - part No 34a (stock No 1340-1100)
Recessed tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
Flush Tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, This brings the tip closer to the work piece
Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint. However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace

Country of Origin

Mexico

Shipping Info

Package Weight

0
