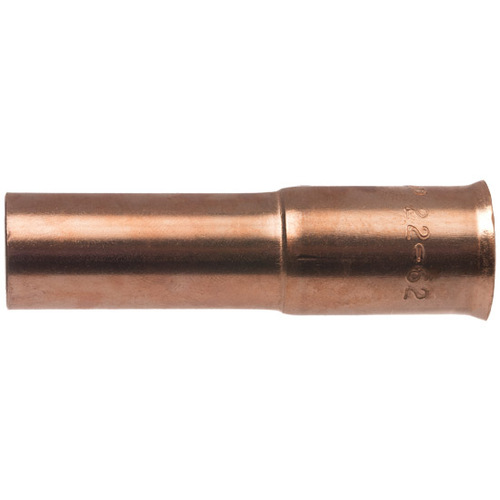

Tweco 2.1″ 0.625″ Bore 22 Series Nozzle

‹ ›

Tweco 2.1″ 0.625″ Bore 22 Series Nozzle

Item # 362861A

Brand: Esab

MFG #: 12201120

Legacy Part #: ES0212201120

Quantity Available

loading...

Type

Nozzle

Wire Size

3/32″ | 1/4″

Model No

22 Series

Style

Flush | Protruding | Recessed

Gun No

Tweco | Tweco No. 2

Product Features

Remarks

Easy identification - part no rolled stamped on the outside surface
Nozzle is adjustable to obtain the contact tip and nozzle relationship wanted
Nozzle housing - cut and formed from 122 dhp copper alloy tubing
Nozzle slides over the standard nozzle insulator
Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
Flush Tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, This brings the tip closer to the work piece
Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint. However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace

Country of Origin

Mexico
