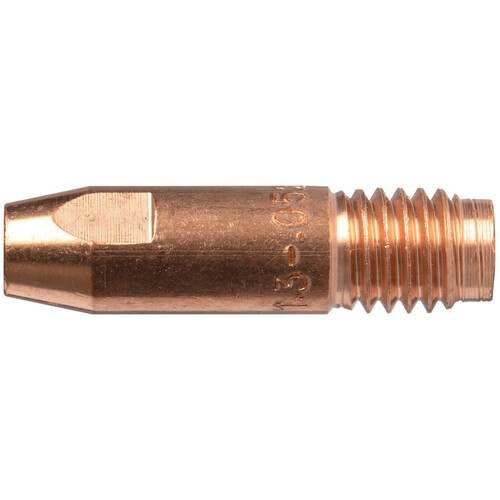

Tweco .062″ × 1.47″ 0.078″ Bore 14H Series Contact Tip

‹ ›

Tweco .062″ × 1.47″ 0.078″ Bore 14H Series Contact Tip

Item # 362719A

Brand: Esab

MFG #: 11401208

Legacy Part #: ES0211401208

Trade Name: Tweco

Quantity Available

loading...

Type

Contact Tip

For Use With

Used in heavy duty welding application up to 400 Amp

Product Features

Remarks

Easy identification - each contact tip is marked showing part no and wire diameter
Excellent electrical properties
Inside diameter tolerance is held to +/-.003 in
Threaded style contact tip to ensure proper contact with a gas diffuser when installed to the mig gun
Machined from a copper alloy tubing providing a consistent and smooth inside diameter surface
Twist it and it locks in place
No threads to worry about
Increased surface contact between contact tip/diffuser for better electrical conductivity Twist it quarter turn clockwise
When tip wear point is reached after use, twist it half turn counter-clockwise to expose a new wear point
This doubles the life of the tip
Thick-walled diffuser design acts as -heat sink- and conducts heat away from the arc source
Increases electrical conductive surface area and thereby increases electrical conductivity

Country of Origin

USA
