MST-646-20 20MM DIA 6-FLU

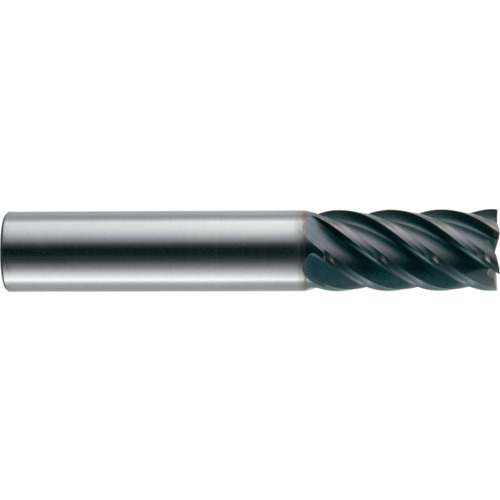

Corner Radius End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 6 FL ; Uncoated ; Series MST-646
| Cutting Diameter (DC) | 20 mm | Flute Helix Angle (FHA) | 40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Chamfer Width (CHW) | 0.28 mm |
| Overall Length (OAL) | 104 mm | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | MST-646 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
