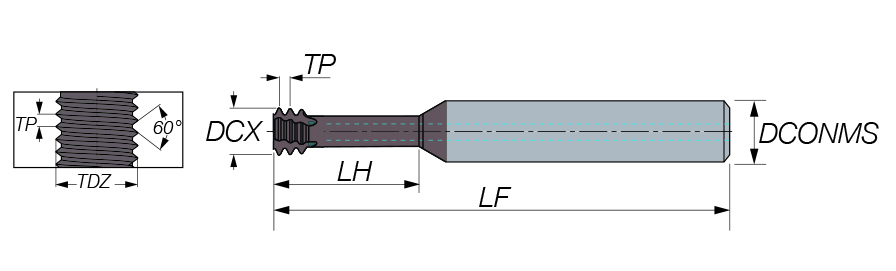

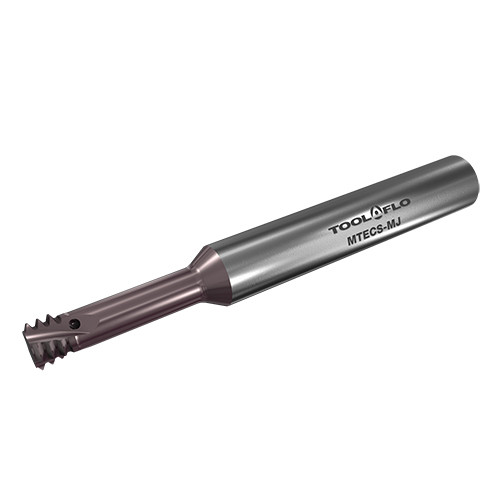

MTECS 10092C301.75MJ AC22
Thread Mill; - x 1.75 mm ; 10 mm Shank Dia. × 73 mm OAL ; Carbide ; TiAlN ; AC22
| Thread Size | - | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.75 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 30 mm |
| Cutting Diameter (DC) | 9.2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 73 mm | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 4.47 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | MJ60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Small Diameter Solid Carbide Internal MJ Profile Threading Endmills with Short Contact Area | Country of Origin | Israel |
Shipping Info
Package Weight
0.163
