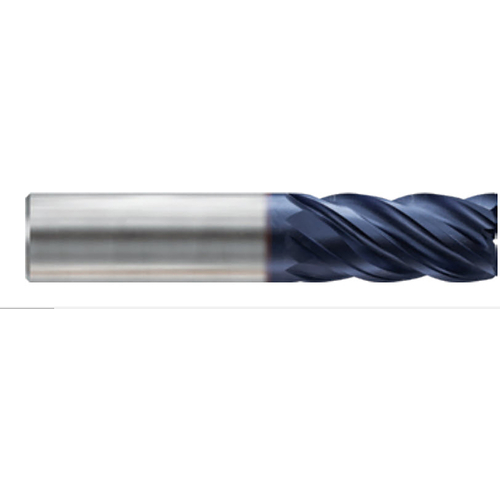

Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 1″ OAL ; 5 FL ; Carbide ; AlTiN ; Series EMI43
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 1″ OAL ; 0.015″ RE ; 5 FL ; Carbide ; AlTiN ; Series EMI43
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 1″ | Decimal Equivalent | 0.5″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Series/List # | EMI43 |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 38 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.503937008
Package Width
0.708661417
Package Height
0.708661417
Package Weight
0.257
