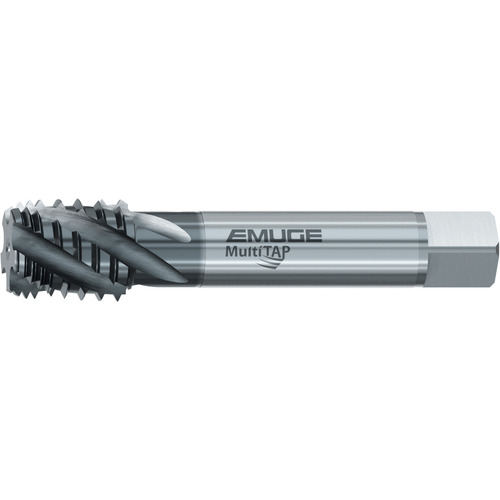

3/4-14 MULTITAP NPT 4″"
| Tool Type | Pipe Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Universal Materials | |
| Threads per Inch (TPI) | 14 | Chamfer | C |
| Thread Standard | NPT | Coating | TiCN |
| Usable Length (LU) | 1.02″ | Cutting Edge Material | HSSE |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Special Feature | The interrupted, skip-tooth profile lowers torque demands and increases tool life. |
| Overall Length (OAL) | 4″ | Series/List # | CU889300 |
| Connection Diameter Machine Side (DCONMS) | 29/32″ | Thread Size | 3/4″-14 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.15
