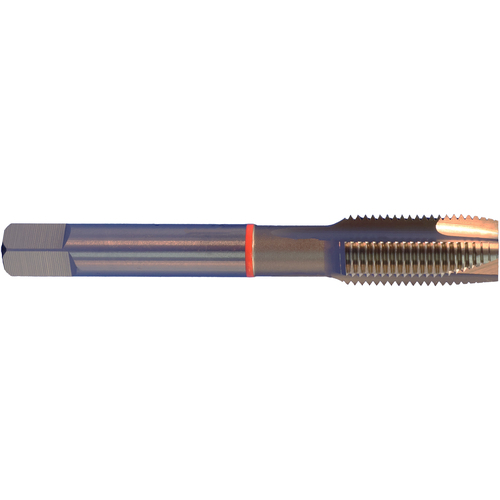

10-24 Dia-H3-3 FL-Std Spiral Point Tap - Red Ring
Spiral Point Tap; #10 - 24 ; 2-3/8″ OAL ; 3 FL ; HSS ; Uncoated ; H3 ; Series 3095
| Thread Standard | NC | Tool Type | High Performance Tap |
| Thread Size | #10 - 24 | Special Feature | High Tensile - Red Band |
| Thread Diameter Size (TDZ) | #10 | Applicable Material | | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 0.531″ |
| Usable Length (LU) | 0.531″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-3/8″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 3095 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.025
