MTECBF 08064G14 1.25ISO A AC22

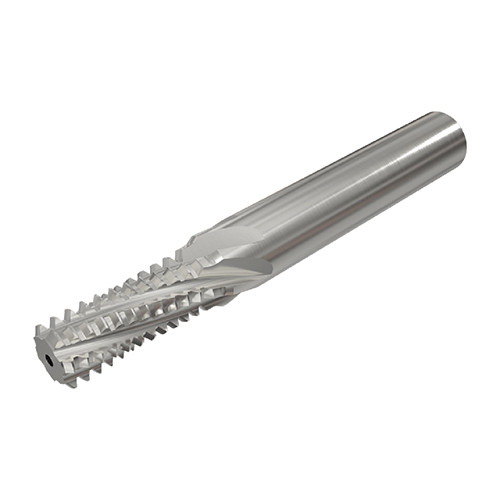

Thread Mill; M8 × 1.25 mm ; 0.315″ Shank Dia. × 2.48″ OAL ; Carbide ; TiAlN ; AC22
| Thread Size | M8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.25 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Position | BOTH |
| Cutting Diameter (DC) | 0.252″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.48″ | Grade | AC22 |
| Flute Count (NOF) | 7 | Depth of Cut Maximum (APMX) | 0.5512″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Solid Carbide Internal Threading Endmills with Coolant Hole for ISO Thread Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0
