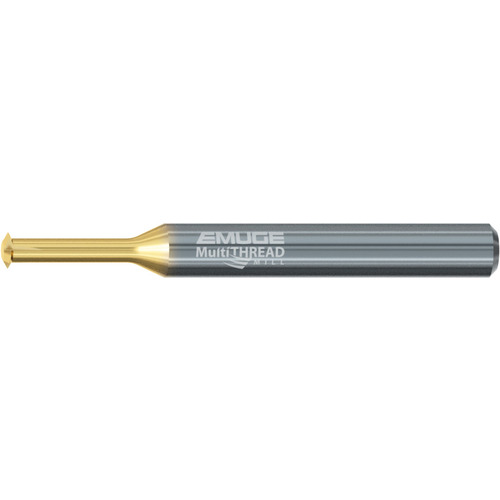

 ZGFI-MultiTHREADMILL-2xD-HA-TIN_GFS23705/(3D) ZGFI-MultiTHREADMILL-2xD-HA-TIN_GFS23705_Enlarge.jpg)
#4- 40 OR 48 UNC/UNF 2XD
Thread Mill; #4 - | 40 | 48 | ; 1/8″ Shank Dia. × 1-5/8″ OAL ; Carbide ; TiN ; Series GFS23705
| Thread Size | #4 | Coating | TiN |
| Threads per Inch (TPI) | | 40 | 48 | | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNC | UNF | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.081″ | Series/List # | GFS23705 |
| Overall Length (OAL) | 1-5/8″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Length Group | 2xD |
| Coolant Supply Property (CSP) | External | Tool Type | Thread Mill |
| Shank Type | Round |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.008
